Glass Kiln Furniture Mullite Cordierite Plate Grooved Perforated Cordierite Mullite Slab Refractory Ceramic Setter

Name: Glass Kiln Furniture Mullite Cordierite Plate Grooved Perforated Cordierite Mullite Slab Refractory Ceramic Setter
Brand: RONGSHENG
Price: 1 USD

$Quality Glass Kiln Furniture Mullite Cordierite Plate Grooved Perforated Cordierite Mullite Slab Refractory Ceramic Setter for sale$ $Quality Glass Kiln Furniture Mullite Cordierite Plate Grooved Perforated Cordierite Mullite Slab Refractory Ceramic Setter for sale$

Brand Name : RONGSHENG

Model Number : 10101-52-7

Certification : ISO9001

Place of Origin : Henan, China

Water Vapor Permeability : Low

Thickness : 1-5mm

Compatibility : Wide Range of Materials

Type : silicon carbide powder

Environmental Impact : Eco-friendly

Model : Insulation Material

Material Type : Micro/Nano Composite

Flexible : Yes

Eco-Friendly : Yes

Durable : Yes

Operating Temperature : -200 to 500 degrees Celsius

Corrosion Resistance : Yes

Waterproof : Yes

Flame Retardant : Yes

Insulation Type : Thermal

Contact Now

Products Description

$Glass Kiln Furniture Mullite Cordierite Plate Grooved Perforated Cordierite Mullite Slab Refractory Ceramic Setter$

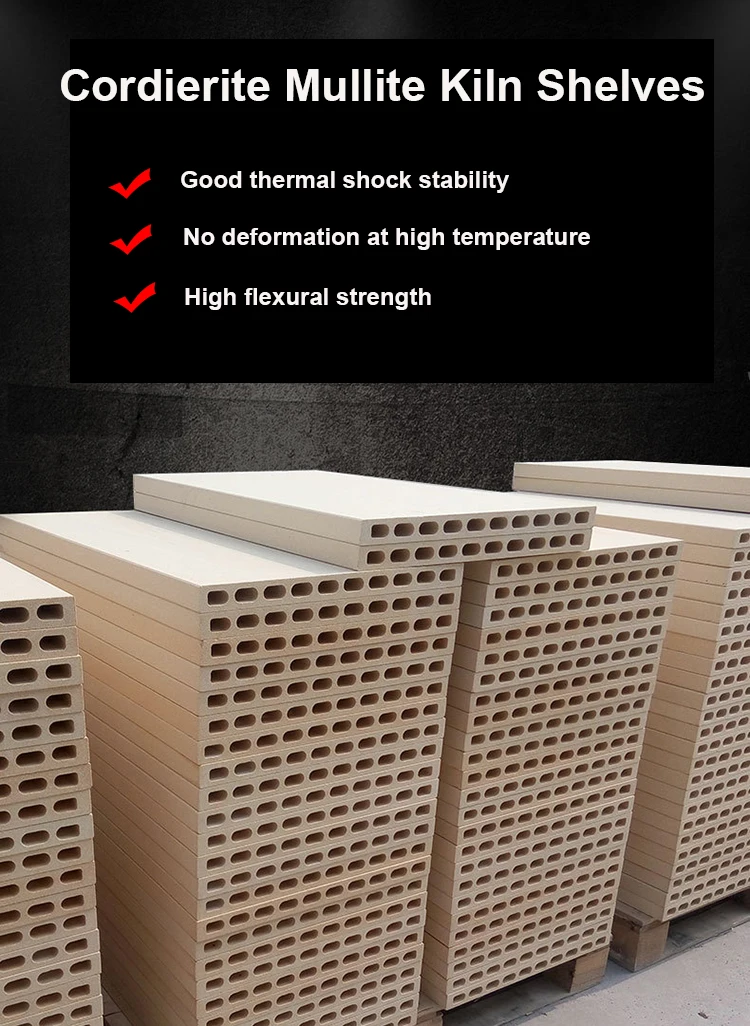

Cordierite Mullite Kiln Furniture:



Cordierite-Mullite kiln furniture is composed of cordierite, mullite and glass phase. Due to the high temperature resistance of mullite and the low expansion of cordierite, Cordierite-Mullite kiln furniture has excellent thermal shock resistance,long service time,can be safety used at temperature below 1350℃.

Cordierite Mullite Kiln Furniture Features:

1. Good thermal conductivity 2. Good high temperature strength 3. Wear resistant and erosion resistant 4. Good thermal shock resistance 5. Good corrosion resistance 6. Good oxidation resistance 7. Not easy in deformation and cracking

$Glass Kiln Furniture Mullite Cordierite Plate Grooved Perforated Cordierite Mullite Slab Refractory Ceramic Setter$

Specification

Cordierite Mullite Plate Specification

Item	Unit	BRAND
Item	Unit	RS-001	RS-002	RS-003
AI2O3	%	35	39	60
SiO2	%	53	49	35
MgO	%	7.5	8	5
Max Working Temperature	ºC	1280	1260	1350
Bulk Density	g/cm3	1.85	1.82	2.2
Apparent Porosity	%	28	30	22
Coefficient of Thermal Expansion at 20ºC - 1000ºC	10-6 k-1	2.6	2.2	3.2
Specific Heat at 20ºC	Kj/Kg.k	1	1	1
M.O.R. at 20ºC	MPa	14	11	11
M.O.R. at 1250ºC	MPa	10	10	10
Thermal Shock Resistance		Excellent	Excellent	Excellent
Max Working Temperature	ºC	1280	1260	1350

Product Application

Cordierite Mullite Kiln Furniture Application


Widely used in the ceramic and glass panel industries. For example, tunnel kilns, shuttle kilns, ceramic kilns, roller kilns, etc.
